FuracosNano
  • FuracosNano Contents
  • Furacos Nano is intended to program the bootloader on Arduino boards.

    The form factor is a 2×2 ladrillo from Furacos platform, that mean that is totally compatible with it.

    Can be powered with an external battery and it have 7 GVS ports.

    The components come in kit and must be soldered together by the user: this is a good starting on your soldering skills and become a true maker.

Main Features

  • Bootloaders programmer

    FuracosNano ICSP Connector On bottom side there is a female ICSP connector and by using the USB cable the default program on Arduino IDE called “ArduinoISP” can be used to reprogram bootloaders on other Arduino Boards without any external programmer.

  • External power supply

    2.1mm Jack from FuracosNano With the 2,1mm connector the board can be powered using the Arduino Nano internal regulator (that accepts a voltage between 7 and 12V).
    Is totally compatible with battery module form Furacos platform.

  • GVS/SVG Connector

    GVS/SVG PINs at FuracosNano
    The board have 6 ports compatible with Furacos (that is to say, all ladrillos can be used with this board).
    Available pins include 3PWM, 2 analog, the serial and I²C ports.

  • LED signaling

    The 3 LED on board are planned to use when the “ArduinoISP” is working:

    • RUNNING {green}: Slow flash, it means that is working and waiting for programm (D9 port).
    • PROGRAMMING {yellow}: Flash when programming a new board using the ICSP connector (D7 port).
    • ERROR {red}: Only flash when any error occurred (D8 port).

    When the board is used for other proyects this 3 LED can be controlled as an digital output and they are the digital ports from 7 to 9.

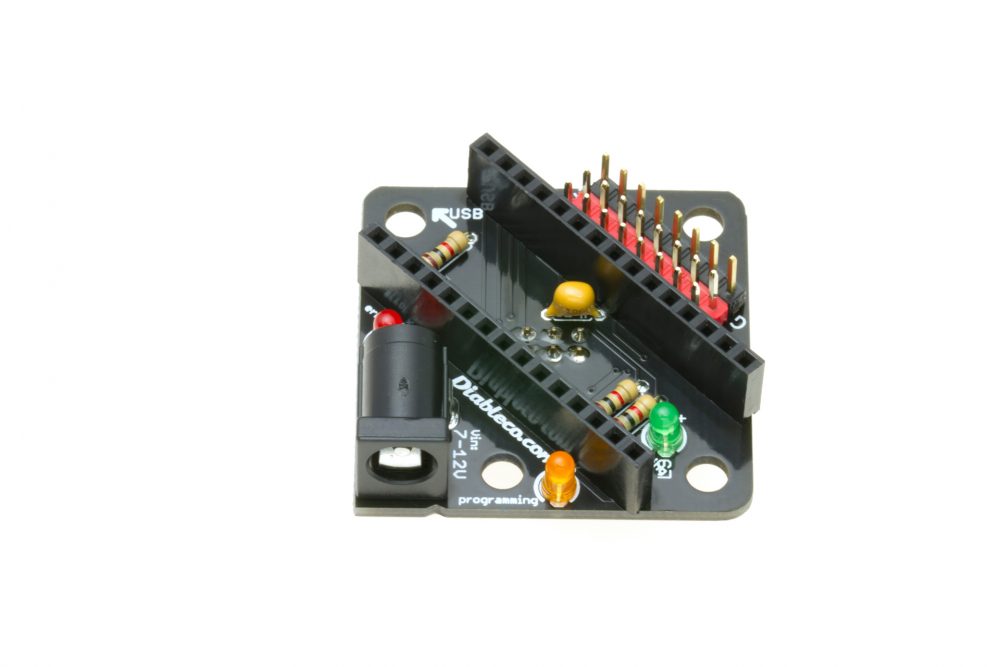

  • FuracosNano have 3 LED



  • Diableco Shop

    Buy Furacos Nano

    Did you know that all Furacos Ladrillos work with this board? Explore the full range of Furacos platform.

    Help and documentation

    Using as a programmer {Provisionally only in Spanish}: Program a bootloader on an Arduino board using Furacos Nano.
    Using as a main board {Provisionally only in Spanish}: Furacos platform help.

  • FuracosNano Contents

    • PCB unassembled
    • Brain compatible with Nano
    • USB micro cable
    • Female connector (15pin) for the Arduino Nano
    • 3 through hole resistor, value 1k (1000Ω)
    • 3 through hole LEDs (red, yellow and green)
    • Capacitor with a 10μF value
    • Jack Female Connector 2,1mm
    • Pin strips white, red and black
    • ICSP female connector 2×3



FuracosNano connected to an Arduino Uno
